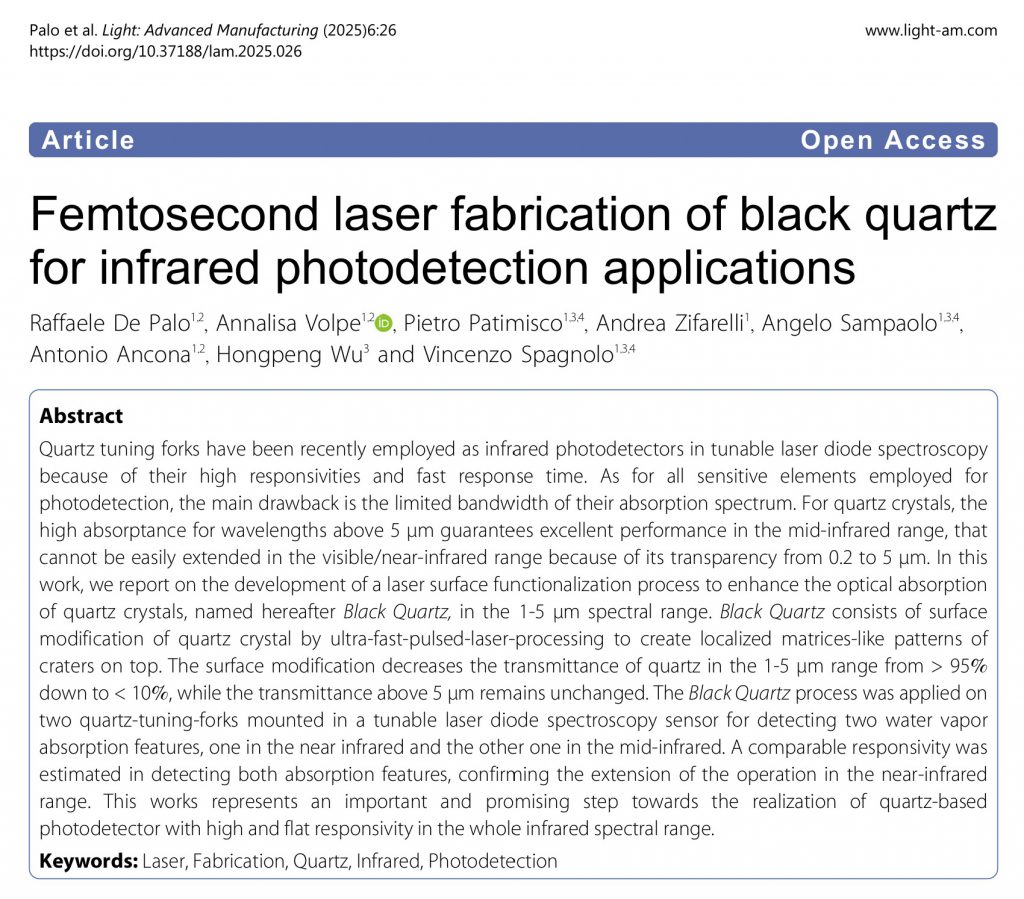

The PolySense team has just published a new article on Light: Advanced Manufacturing Journal reporting on the development of a laser surface functionalization process to enhance the optical absorption of quartz crystals, named hereafter Black Quartz, in the 1-5 µm spectral range. Black Quartz consists of surface modification of quartz crystal by ultra-fast-pulsed-laser-processing to create localized matrices-like patterns of craters on top. The surface modification decreases the transmittance of quartz in the 1-5 µm range from > 95% down to < 10%, while the transmittance above 5 µm remains unchanged. The Black Quartz process was applied on two quartz-tuning-forks mounted in a tunable laser diode spectroscopy sensor for detecting two water vapor absorption features, one in the near infrared and the other one in the mid-infrared. A comparable responsivity was estimated in detecting both absorption features, confirming the extension of the operation in the near-infrared range. This works represents an important and promising step towards the realization of quartz-based photodetector with high and flat responsivity in the whole infrared spectral range.
The following link provides access to the article:
http://polysense.poliba.it/wp-content/uploads/2025/05/Lights_Black-quartz_2025.pdf
